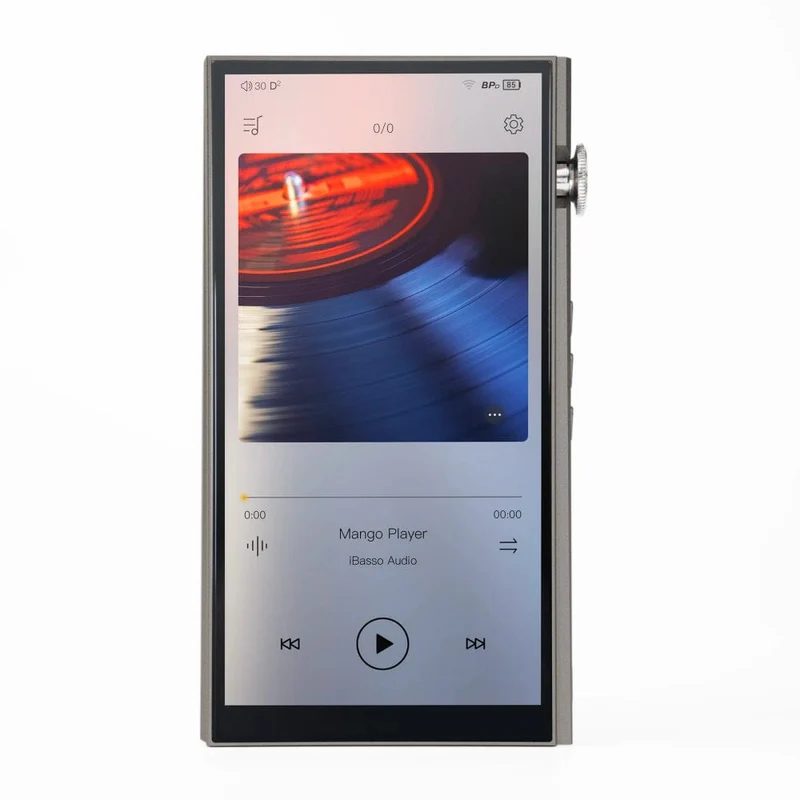

iBasso DX270 R2R Ultra Digital Audio Player

iBasso DX270 R2R Ultra — The Evolution of Audiophile Decoding

The iBasso DX270 is not merely a digital audio player; it is a deep reconstruction of R2R architecture. By combining a hybrid 20-bit R2R + 4-bit String DAC design with iBasso’s proprietary FPGA-Master 3.0 technology, the DX270 achieves performance levels that push past the traditional ceilings of R2R devices, delivering a natural, pure, and realistic musical presentation.

• Hybrid R2R Architecture: The DX270 utilizes an 8-channel, fully differential discrete R2R design. By employing 344 high-precision resistors—nearly double the standard count—it achieves 130dB dynamic range and THD+N better than -97dB.

• FPGA-Master 3.0 Control: This controller acts as the real-time hardware calibration master. It utilizes dual femtosecond Accusilicon clocks to minimize noise and supports both NOS (Non-Oversampling) mode and four in-house developed digital filters for tailored listening.

• Eliminating Distortion: To solve the common issue of zero-crossing distortion, the DX270 features a fully differential architecture that achieves an ultra-low -120dB zero-crossing distortion level, ensuring vocal nuances and subtle harmonics are preserved.

• Dual Operating Systems: Enjoy the flexibility of Android 13 (with system-level SRC bypass for streaming apps) or the pure, dedicated performance of Mango OS—a Linux-based system designed to minimize EMI and SoC interference for the cleanest possible audio playback.

• Desktop-Grade Versatility: With support for a 12V DC external power input, the DX270 can be used as a desktop-grade powerhouse to drive demanding headphones with ease.

Technical Specifications
